RZ series high temperature thermogravimeter
The instrument is used to measure the change of mass of samples heated in different atmospheres. The equipment is designed an
The instrument is used to measure the change of mass of samples heated in different atmospheres. The equipment is designed and manufactured according to the requirements of GB / T 17732 "test methods for dense shaped carbon containing refractories" and the research of high temperature nitriding process of refractories. IPC industrial computer is used for automatic control. The interface is friendly, the temperature control precision is high (expert fuzzy control algorithm is applied), and the test results are recorded automatically. The curves of temperature time, quality time and quality temperature can be drawn. The original data can be converted into excel storage format, which can be read, queried and printed at any time.

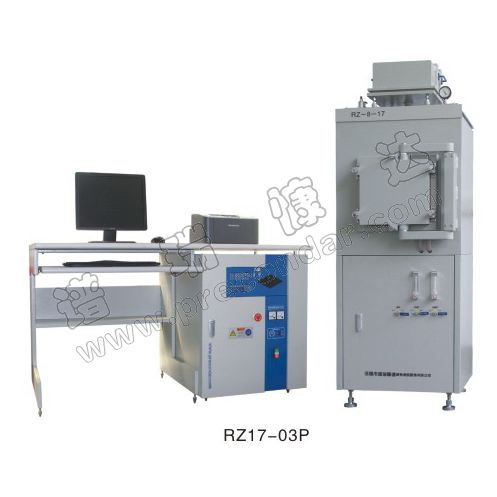

| 型號/參數(shù) Model/specification | RZ17-01 | RZ17-02 | RZ17-03 |
| 使用溫度 Working temperature(℃) | 1650 | ||
| 升溫速率 Heating-up rate(℃/min) | 0～8 | ||
| 樣品最大質(zhì)量 Max.mass of sample(g) | 50 | 200 | 500～1500 |
| 測量精度 Measuring accuracy(g) | 0.0001 | 0.001 | 0.01 |
| 保留溫度精度 Temperature accuracy in soaking(℃) | ±2 | ||
| 爐膛尺寸 Hearth size(mm) | 200×150×150 | ||
| 爐膛氣氛 Atmosphere of the furnace | Air,N?,Ar | ||
| 爐膛壓力 Air pressure of hearth(MPa) | -0.095～0.06 | ||
| 主機尺寸 Size of mainframe(mm) | 800×610×1700 | ||
| 電源 Power supply | 380V 50Hz 12kW | ||
| 重量 Weight(kg) | 800 | ||
