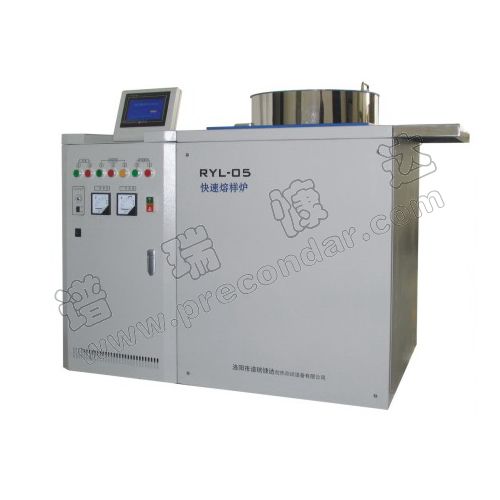

Rapid melting furnace for RYL-05 X-ray fluorescence analyzer
The special fast melting furnace for X-ray fluorescence analyzer is mainly used for melting sample pieces of X-ray fluorescen

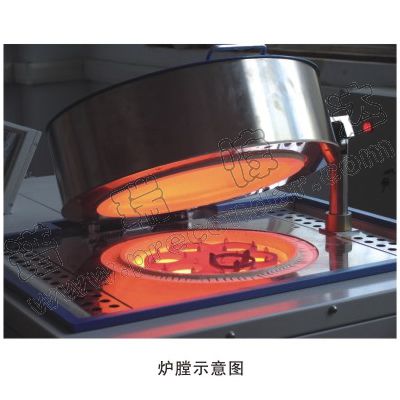

The special fast melting furnace for X-ray fluorescence analyzer is mainly used for melting sample pieces of X-ray fluorescence analyzer. With carbon rod heating, the sample tray can rotate and the furnace body can swing, which can make the sample form vortex motion in the process of melting, so as to achieve good sample melting purpose.
| 工作溫度 Working temperature(℃) | 0～1170 |
| 最高溫度 Max.temperature(℃) | 1200 |
| 硅碳棒發熱體 SiC heating element(mm) | φ16×250×175 |
| 功率 Power(kW) | 8 |
| 控溫精度 Temperature accuracy in soaking(℃) | ±2 |
| 升溫速度 Heating-up rate(℃/min) | 0～30 |
| 托盤轉速 Rotation speed of pallet(r/min) | 15(adjustable) |
| 爐體擺角 Swing degree of furnace body | 30°(25～35°,adjustable) |
| 爐體擺頻 Shake frequency of furnace body(r/min) | 4（2～6,adjustable） |
| 爐體極限停頓時間 limit pause time(s) | 4（1～20,adjustable） |
| 熔樣溫度 Temperature of melting sample(℃) | 0～1170可選optional |
| 前靜置時間 Pre-rest time(min) | 0～99可選optional |
| 擺動時間 Swing time(min) | 0～99可選optional |
| 后靜置時間 latter rest time(min) | 0～99可選optional |
| 運行極限時間 limit time of working(h) | 99 |
| 熔樣數量 Quantity of melting sample | 3,4,6位可選 |
| 機體尺寸 Dimension of furnace(mm) | 1230×810×1260 |
| 電源 Power supply | 三相380V、16A 單相220V、40A three phase 380V 16A,single phase 220V 40A |
